OPTIONS

Options for Runway friction testing equipment

Skiddometer continuous friction measuring equipment can be equipped with additional features which will add more value to its users. When purchasing Skiddometer trailer or vehicle integration, it will include the unit itself, touch screen measuring computer and cable connection between computer and Skiddometer. Additionally the user can add features to get more value out of the equipment.

The user can choose the most suitable computer for the need. MI-900 is a military version of the measuring computer which is protected for interference and have all the functions built in. Small LCD display, internal printer and push buttons ensure working in all possible environments. On commercial airports the usage is lighter and more features is required. Then the modern Touch Screen Computer with additional equipment is the best solution. Read more of available option below.

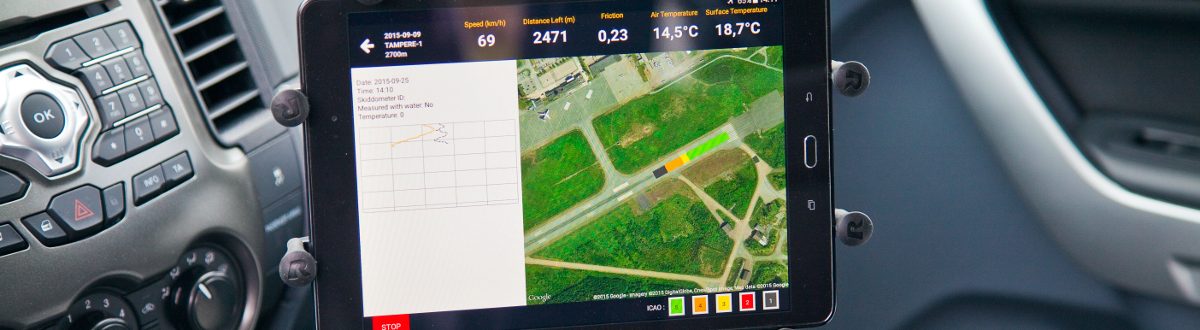

TSC – Touch Screen Computer

Touch Screen Computer is the latest innovation on friction measuring. It changes the industry of friction measuring as it utilizes usage of commercial tablet computers. Software is designed to be used on any Android based tablet on the market. Together with Web service, Touch Screen Computer is the most modern system available. CAN based communication allows easy integration of additional equipment and makes friction testing equipment to a multi purpose machine.

MI-900 Computer

The Skiddometer MI-900 Computer is used to record and print out friction data. It has been developed in close co-operation with several airport customers, following the success story of older MI-series computers. MI-900 is a robust computer for any use. It has all functions built in so no additional equipment is required. It can be connected to a laptop to get more graphical view on the friction results. Results can be analyzed on unique program called Friction. All results can also be exported to .csv file for further usage.

Wireless communication

Skiddometer BV11 can be equipped with wireless communication. Then usage of cable between the trailer and computer is unnecessary and makes attaching the trailer easier for the user. Only hook up the trailer to tow ball and start measuring. Communication can be selected between Bluetooth and WiFi whichever is the most suitable option for the user. Power comes from on-board battery. The wireless communication doesn’t prevent using traditional cable communication and power supply.

Web Service

When using Touch Screen Computer together with Skiddometer BV11 friction measuring equipment you are granted an access to web service. All measuring information can be uploaded to a server and access is done by web browser. This makes transferring information between all airport parties, such as maintenance, traffic control, tower, etc., easy. All parties have access to the measuring information quickly and effortless.

Surface Temperature Meter

Surface temperature combined with friction values are critical information for airports to ensure safe landing conditions. It’s also important for runway maintenance to optimize cleaning and de-icing.

The Skiddometer CFME system can be equipped with surface temperature meter. It’s a great addition to determine surface conditions. A small meter is attached to Skiddometer BV11 trailer or Skiddometer BV11 VI pick-up truck. Temperature information can be seen and printed together with friction information on measuring computer.

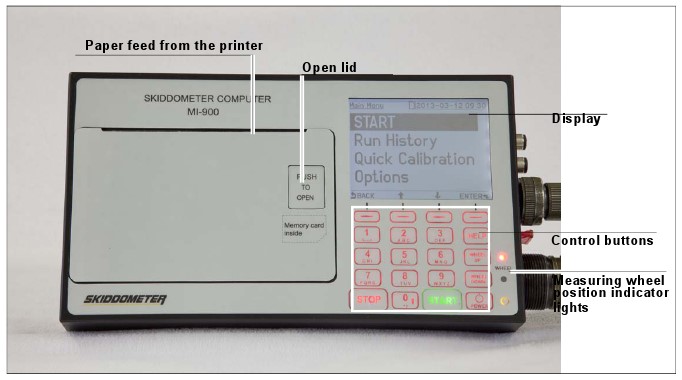

MI-900 Computer

The Skiddometer MI-900 Computer is used to record and print out friction data. It has been developed in close co-operation with several airport customers, following the success story of older MI-series computers. All the older computer types are still fully usable. The MI-900 computer has many advantages:

  • Easy to use, large screen
  • Reliable even in the most extreme weather conditions
  • Screen display and printouts follow ICAO and FAA
    standards
  • Unlimited measuring data saved on memory cards
  • Laptop compatible.
  • Compatible with all Skiddometer BV-11 friction measurement trailers
  • Compatible with MI-9 and MI-90 measurement cable and power supply cable
  • Power supply 12V 10A
  • Working temperature –20 to +40 Celsius (-4 to +104 Fahrenheit)
  • Internal memory 1gb
  • External memory up to 2 gb
  • CPU Dual core
  • Size: 251 x 142 x 56 mm (10 x 5,6 x 2,2 inch)
  • Mounting: VESA 75
  • Paper with 112 mm (4,4 inch) (same as MI90)
  • One year full warranty
  • Manufacturer: Moventor Oy Inc.

MI-900 can be attached to a stand through the back panel. In the back of the MI-900 there is a VESA 75 standard mount. A VESA 75 compatible stand can be attached through four M4 bolts. If you want to know more about the stands suitable for your vehicle, please contact us with the information given in the contact page.

An MI-900 used for military purposes is protected against radio interference. Thus it complies with the requirements of the MIL-standard 461C, part 8 , method UM03. This calls for providing the voltage and measurement cables with separate interference protection devices. The MI-900 and analog indicators have already been protected.
The purpose of having a password for entrance to part of the program is to protect many very vital parameters from being changed by unauthorized or untrained personnel, because this would jeopardize the safe and accurate function of the MI-900.
Updating the software is done via the memory card. Manufacturer automatically sends the updates and the updating can be done on site.
You can connect the MI-900 to a laptop via USB or RS232. The Friction software gives you detailed information about the measurement in clear colors. The data can be transferred in real time or afterwards via the memory card. The data can be stored and printed out.

Surface Temperature

Surface temperature combined with friction values are critical information for airports to ensure safe landing conditions. It’s also important for runway maintenance to optimize cleaning and de-icing.

The Skiddometer CFME system can be equipped with surface temperature meter. It’s a great addition to determine surface conditions. A small meter is attached behind the Skiddometer BV11 trailer or Skiddometer BV11 VI pick-up truck. Temperature information can be seen and printed together with friction information on measuring computer.

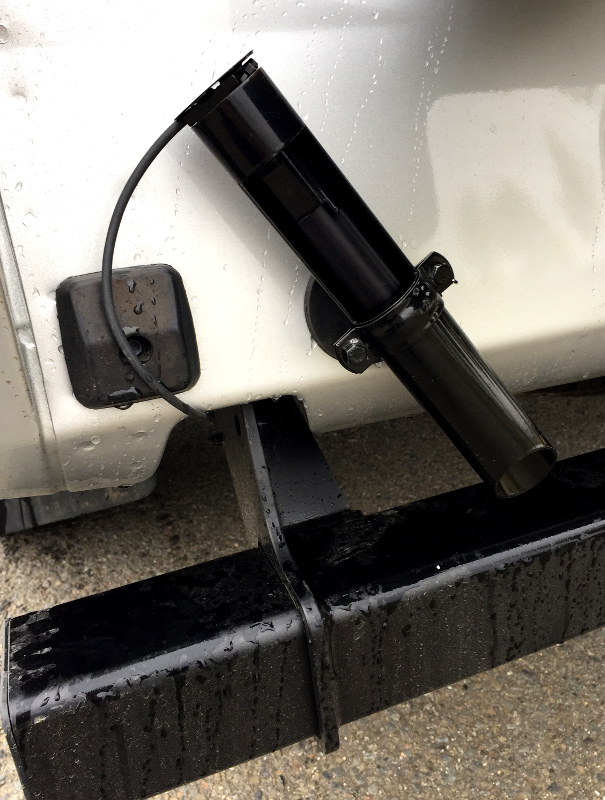

Surface temperature meter

  • Sensor type: Skiddometer Airport and Road Surface Temperature Sensor
  • Temperature range: -30 … 50 °C
  • Power supply: 9 … 30 VDC, power from Skiddometer
  • Power consumption: about 1 W
  • Measures: length 270 mm, diameter 40 mm, weight 700 g (sensor part only)
  • Accuracy of measurement: Estimated absolute accuracy is 0.3 °C (0.6 °F), when the difference between the surface temperature and the ambient temperature is less than 5 °C
  • Resolution of measurement: 0.1 °C (0.2 °F)
  • Internal noise level: about 0.3 °C (0.6 °F) with 1 second response time
  • Installation: magnetic fixing on steel surfaces of a vehicle or by using an M8 bolt, power from Skiddometer
  • Data transmission: Cable connection to Skiddometer databox, from databox to computer wireless or by cable
  • Surface temperature values are stored and printed together with friction values
  • Values can be exported together with other info as length, speed, friction and gps coordinates
  • Temperature value is seen on the screen all time during measurement
